Guide 031 / Belly band

Your Belly Band Fails the Moment You Glue the Center

A working belly band forms a shallow bridge: two anchored ends, one lifted center, and enough slack for the thickest planned insert to slide without buckling.

Beginner friendly Paper structure 34 min

Edited by Maker examples are named and linked.

Raised bridge map

The band bridges the insert

Spacer sets the lift before glue dries

End tabs carry all the stress

The thickest planned insert sets the gap

The center channel should feel deliberate: lifted enough to slide, narrow enough to keep the insert from wandering.

The card entered once while the glue was damp. The next morning it stops halfway and bows under the strip.

The decorated strip catches the eye, but the measured air beneath it does the work. A spacer creates that lift; release paper protects it; your thickest planned insert lets you check it before the glue sets.

Wrap the thickest planned insert in release paper, lay the band over it without pulling, and glue only the two end tabs. Slide the spacer out before the glue hardens, let the center dry empty, then load the insert and close the journal.

Quick Start

Let the thickest planned insert set the air gap.

This bridge suits tags, journaling cards, loose envelopes, folded notes, floating pockets, and small removable bundles that need light pressure rather than sealed storage.

Choose thickest insert + Wrap spacer + Glue generous end tabs + Close-test loaded

The center is a pressure channel

Glue only the two end tabs. The center stays dry, lifted, and free of decoration until the insert can slide in, pause, and slide out without bending.

Guide Promise

Measure the empty space under the strip.

A band is enough when

A light bundle must remain removable, visible, and easy to re-stack without committing every edge to glue.

First bridge test

Cut a 1.25 x 5.5 in trial strip, wrap it over a release-paper-covered test load, bond 5/8 in starting tabs, then remove the spacer before the glue hardens around it.

Choose real depth when

The insert is thick, springy, uneven, or heavy enough to make the band behave like a tight belt.

Materials

A band may begin in the scrap pile.

Band strip

Reinforced scrapbook paper, folded book page, light cardstock, or paper-backed fabric. Glossy scraps need a peel test at the end tabs, and fabric-backed strips need a dry pull test for stretch. Linda Israel stacked long leftovers from a gel print, a mop-up page, kraft, and dictionary paper for her scrappy band. Run a finger along the reverse of any pieced strip; an overlap that looks flat from the front can still catch a card underneath.

Spacer stack

A test load wrapped in release paper, wax paper, or a slick protective sheet. Match the thickest everyday combination, not the thinnest pretty tag.

Test inserts

A duplicate of the real tag, envelope, or floating pocket. Match the thickest load the band will carry.

Adhesive

Strong dry tape or a restrained glue line on the end tabs only. Keep liquid adhesive away from the lifted channel.

Pressure scrap

Clean scrap paper for pressing the end tabs. It keeps fingerprints, glue shine, and accidental smears off the working band face.

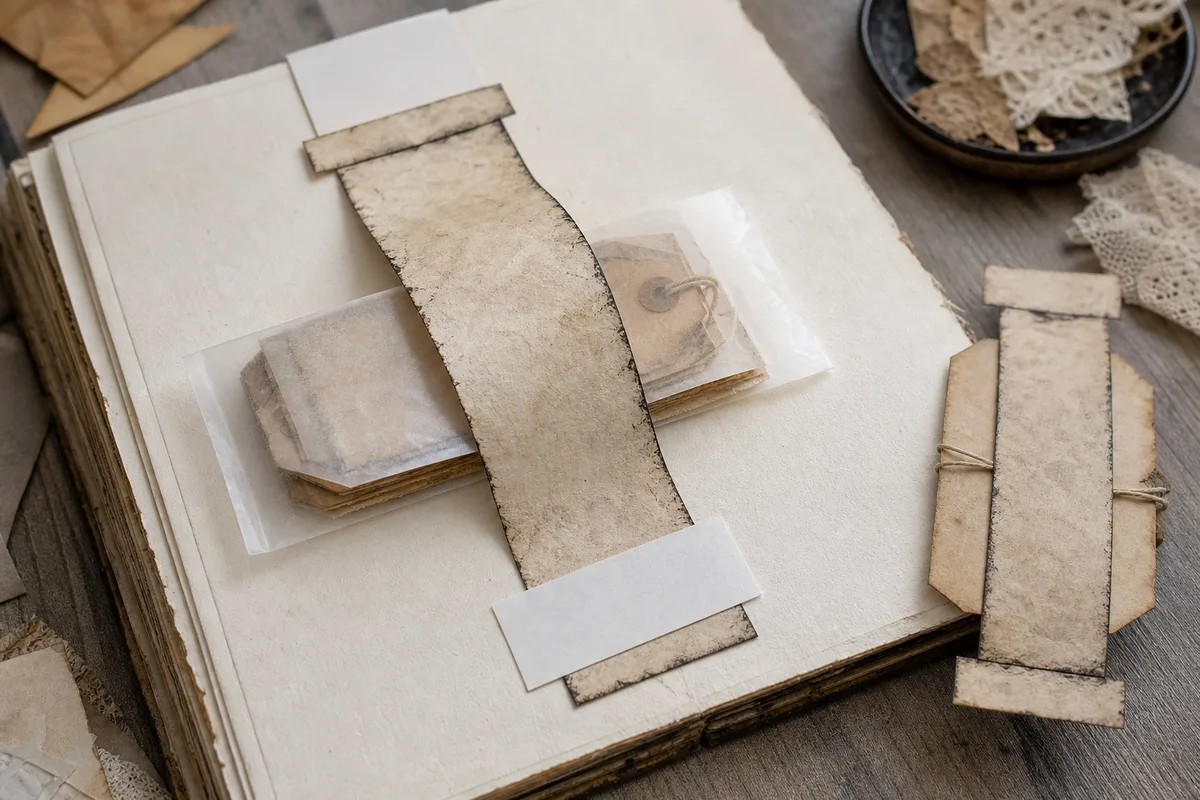

Belly-band end tabs with release paper lifting the center channel
The spacer holds the center lift while the two end tabs dry.
White end zones: press only the anchor tabs, never the middle of the band. Wrapped test load: size the lift with the thickest planned insert protected by release paper. Illustrated failure case: a flat center is shown bending the insert underneath it.

Sizing

Measure the span and the landing zones separately.

  1. Use a 1 to 1.75 in wide band for most journal pages. Narrow strips look elegant but can cut a crease into soft inserts.
  2. Begin with at least 1/2 in of contact at each end and test 5/8 in for a fabric-backed, glossy, or more demanding load. Surface finish, paper strength, and adhesive behavior decide the final landing area.
  3. Make the band long enough to cross the insert plus both end zones without tension. If you have to pull the strip tight to reach the end marks, cut a longer strip.
  4. For envelopes, cross the body of the envelope, not only the flap. A band over the flap can press the closure shut and make the envelope feel glued.
  5. Leave the pull edge visible on at least one side of the band. A centered band that hides every edge turns the insert into a guessing game.
  6. Stop at one light bundle. If the band needs to hold several thick cards, the honest structure is a gusseted pocket.

Glue Map

Two landing zones carry the bridge.

Vertical band Glue only the top tab and bottom tab The insert slides under the long center span. Any glue creep there turns the bridge into a flat label.
Horizontal band Glue only the left tab and right tab This works for envelopes and wide cards only when the pull edge stays visible and the flap is not pinned shut.
Lifted channel Spacer only, no adhesive, no brad, no decorative seal The center needs a little air. Decoration that flattens the bridge is just a slower way to glue it closed.
Spacer zone Release paper wrapped around the test load Remove the spacer while the end tabs are set but not fully rigid, then let the anchors finish drying without the real insert trapped inside.
Pull edge One insert edge remains visible outside the bridge The bridge holds pressure; the exposed edge tells the hand where to start.

Spacer Sequence

Shape the air gap before the end tabs set.

  1. Choose the thickest bundle the band needs to hold. Include the envelope, floating pocket, or folded note if that is the real daily load.
  2. Wrap that test load in release paper so wet glue cannot grab it and pressure cannot emboss the insert face.
  3. Cut the band strip long enough for the lifted span plus two generous end tabs. Mark the tabs on the back before any adhesive appears.
  4. Dry-fit the strip over the wrapped spacer. The strip should rest over the bundle without being pulled tight.
  5. Apply adhesive only inside the marked end tabs. Keep the lifted center and the spacer dry.
  6. Press the end tabs through clean scrap paper while the wrapped spacer sits under the center.
  7. When the end tabs hold their position, slide the wrapped spacer out carefully. Do not wait until wet glue has hardened around the spacer shape.
  8. Let the anchors finish drying with the channel empty.
  9. Test the planned bundle from both entry directions. It should pause under the bridge without bending.
  10. Close the journal under light pressure, reopen, and check whether the band left a ridge on the facing page.
  11. Stand the page upright and tap once. If the load wanders sideways, add a stop outside the bridge or choose a pocket.
  12. Add decorative stitching, labels, or torn paper only after the slide test passes, and keep those additions away from the center channel.

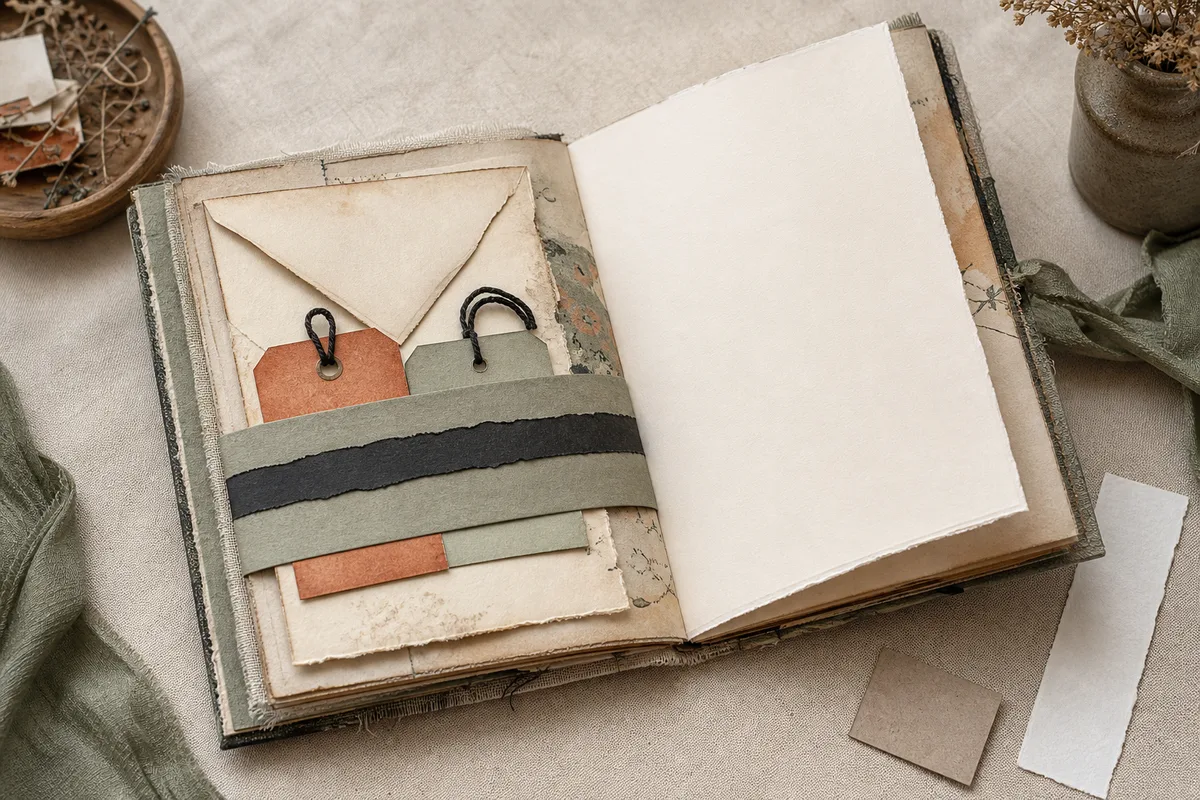

Loaded belly band on a journal page with a blank facing page ready for a close-flat pressure check
A loaded band has to pass two tests: the inserts must slide without bowing, and the facing page must reopen without a hard ridge.

What the Bridge Reveals

A bow, peel, or ridge names the overload.

Insert bows on removal What it means The spacer was too thin, the strip was pulled tight, or decoration flattened the bridge. Rebuild with more lift instead of forcing the card through.
Ends lift What it means The end tabs are too short, the paper surface is slick, or the load is heavier than the anchors can carry. Use longer tabs, drier adhesive, or a lighter bundle.
Band clamps the insert What it means The spacer was too thin or the strip was pulled tight while gluing. Rebuild around the planned load instead of sanding the insert through the channel.
Contents wander sideways What it means The band crosses too high, the insert is too narrow, or the page angle invites sliding. Add a discreet stop tab beside the band or rotate the structure.
Facing page shows a ridge What it means The load is too thick for a flat pressure bridge. Reduce the bundle or move to a gusseted pocket before the journal starts closing with a lump.
Spacer tears or sticks What it means Adhesive reached the lifted channel or the spacer stayed too long. Rebuild; pulling harder can stretch the bridge and scar the page.

Repair the Pressure Path

Change the lift or load before adding adhesive.

  1. If narrow tags slide sideways, add one small stop tab beside the band. Do not glue under the center to fake a stop.
  2. If the journal wedges open, replace the bundle with thinner inserts or split the load across two bands on different pages.
  3. If one end lifts, cap that end with a small paper patch that extends the anchor area. Leave the bridge untouched.
  4. If the band hides the pull edge, shift the insert, add a small exposed tab to it, or rebuild the band narrower. Do not decorate the middle as a substitute cue.
  5. If the spacer sticks, stop and rebuild. Pulling against the page can tear fibers or stretch the channel unevenly.
  6. If the band keeps acting like a clamp, stop calling it a belly band and rebuild it as a pocket with depth.

Vertical vs Horizontal

Let the same envelope choose the direction.

Make one vertical and one horizontal belly band on scrap paper. Test the same envelope under both, close the journal, and choose the direction that keeps the pull edge visible without printing a ridge on the facing page.

Then repeat with a two-card bundle. If the second card lifts an end tab or dents the facing page, put it aside for a pocket with depth. More adhesive would only make the same bridge harder to remove.

Spacer matches the thickest planned load. End tabs have at least 1/2 in of real contact. Release-paper spacer created visible lift. Center channel has no glue, brad, or decorative seal. Insert slides both directions without bowing. Closed-journal test leaves no hard ridge.

Final Checklist

Check the bridge before the pretty layer hides the mistake.

01

Only the two end tabs are glued.

02

Each end tab has enough contact area for the load.

03

The release-paper spacer created a visible center lift.

04

The spacer protected the channel while the end tabs dried.

05

The planned insert slides both directions without bowing.

06

The band holds after the loaded close-test.

07

The facing page shows no hard ridge.
