Guide 018 / Adhesive maps

The no-glue zone: where adhesive belongs on pockets, sleeves, and clips.

Before you glue a pocket shut by accident, draw the path the insert, page edge, or hinge needs to travel. Then keep adhesive outside that path.

Beginner friendly Paper structure Preservation-aware
Open journal showing pockets, sleeves, and altered clips marked with safe adhesive edges and open no-glue channels
Every working paper structure has a travel path. The adhesive belongs beside that path, not across it.

Most failed journal pockets do not fail because the idea was wrong. They fail because adhesive crossed the route the paper needed to move through.

A pocket needs a mouth. A sleeve needs a clean channel. A flip needs a hinge that can bend. An altered clip needs an open throat where the page edge can slide. These working areas are the no-glue zones.

Use this guide before building pockets, vellum sleeves, hidden tuck spots, fabric flips, belly bands, paper hinges, or altered clips. The method is simple: map the adhesive, dry-fit the real insert, glue only the bond zones, and test before decorating.

Guide Promise

Make interactive paper pieces that stay open where they need to move and sealed where they need to hold.

Use this when

You are adding a pocket, sleeve, flip, tuck spot, belly band, or altered clip and want it to work after the glue dries.

First build spec

Draw the insert path, mark all no-glue zones, dry-fit the real insert, glue narrow edge lines, then slide-test ten times before adding decoration.

Avoid this when

You are mounting originals, valuable photographs, brittle paper, or irreplaceable ephemera. Use copies, photo corners, sleeves, or a conservator-approved enclosure instead.

Quick Start

Before you glue, decide what must still move.

Set the pocket front, sleeve, clip wrapper, or hinge piece on the page without adhesive. Put the real insert in place. Slide it in and out. Open the flip. Move the clip on and off the page. Wherever paper travels, bends, or needs fingertip access, leave a no-glue zone.

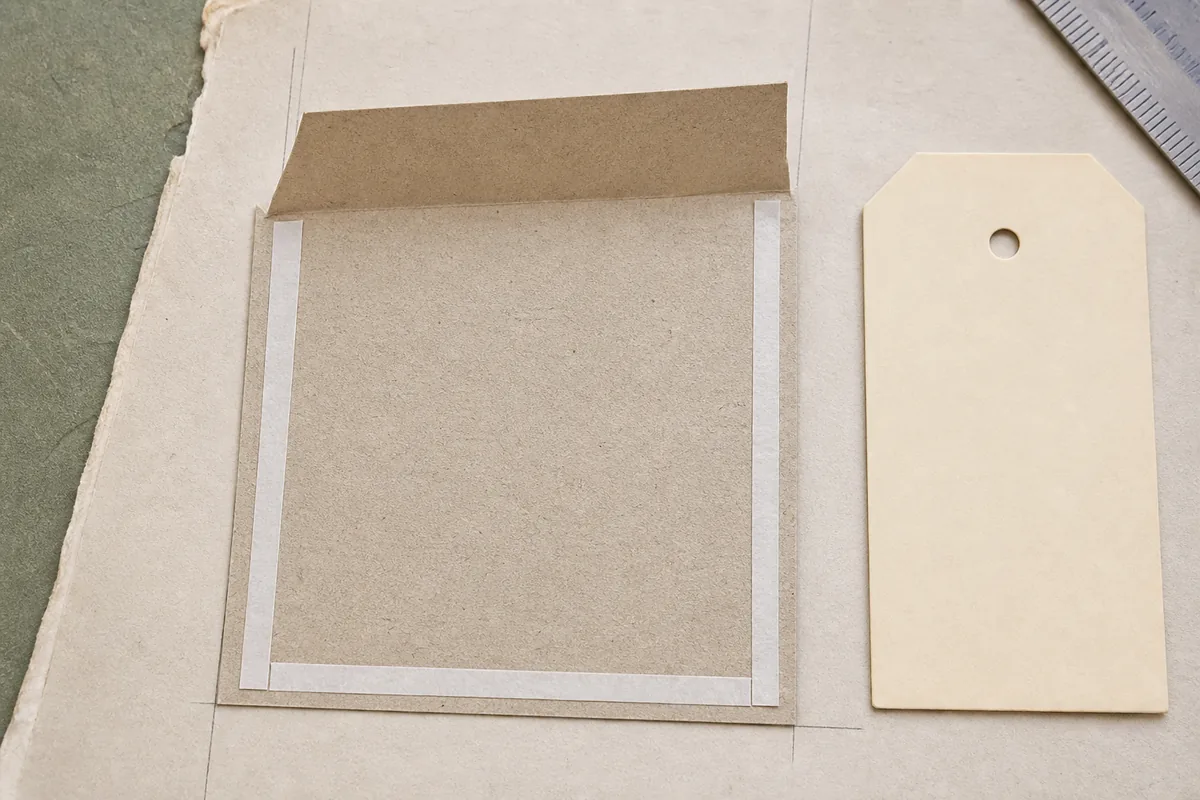

Adhesive map for journal structures showing bond zones around the edges and no-glue channels at pocket mouths, hinges, and clip paths
Map first. Bond zones hold the structure down. No-glue zones protect the mouth, hinge, channel, and pull path.
Bond zone: the narrow area where adhesive can safely hold an edge. No-glue zone: the open path where an insert, page edge, or hinge needs clearance. Stop line: the place where adhesive must end before it squeezes into the opening. Test insert: the actual card, tag, photo copy, or paper strip that proves the path works.
Map the motion + Dry-fit the real insert + Glue only edge zones + Test before decorating

The beginner rule

Never put adhesive on the side where the insert enters, the fold line where a piece swings, or the hidden path where a clip grips the page. If a part needs to move, the glue line must sit outside its path.

Adhesive Map

Draw three zones before opening the glue.

An adhesive map is a quick pencil plan on scrap paper or on the back of the structure. It tells you where adhesive belongs and where it must stop. This sounds fussy until you realize it prevents most sealed mouths, wrinkled sleeves, locked clips, and sticky pockets.

01

Bond zone

This is the narrow line that actually needs adhesive. On a pocket, it is usually two sides plus a bottom. On a sleeve, it may be the outer side tabs. On a clip wrapper, it is the paper folded around the outside of the clip, not the page channel.

02

No-glue zone

This is the route that must stay open. Include the pocket mouth, the insert channel, the thumb notch, the hinge fold, the belly band gap, and the throat of any altered paperclip.

03

Squeeze zone

Wet glue spreads when pressed. Leave a little empty space between the glue line and the channel, especially near corners and notches. The wetter the adhesive, the wider this buffer needs to be.

04

Test zone

Use the same paper and adhesive on a scrap strip. Let it dry, then slide, bend, peel, and rub it before using the method on a finished spread.

For a small tag pocket, a 2 to 3 mm clearance can be enough. For folded inserts, handmade paper, fabric-backed paper, or anything with torn edges, allow more room. The no-glue channel should be wider than the thickest part of the insert after it has been handled, not just after it has been cut.

Dry-Fit Order

Build the route before you build the decoration.

Expert-looking interactive pages usually come from boring sequence discipline. The working structure is tested first. Decoration comes after the mouth, channel, hinge, or clip path has proven itself.

  1. Cut the pocket front, sleeve, hinge strip, belly band, or clip wrapper slightly larger than you think you need.
  2. Place the real insert, tag, photo copy, page edge, or clip inside the structure while everything is still dry.
  3. Mark the mouth, pull direction, hinge fold, and hidden channel with light pencil on the back.
  4. Round sharp insert corners if they catch. A square card corner can shave glue from a side seam and drag it into the channel.
  5. Trim the structure only after the insert slides cleanly. Leave extra clearance for fibrous paper, vellum curl, fabric tabs, and layered collage.
  6. Apply adhesive to the movable piece when possible, not blindly to the journal page. This keeps the glue line visible until the last moment.
  7. Stop adhesive short of the mouth, notch, fold, or channel. Do not drag wet glue all the way through a corner where the insert needs to turn.
  8. Press from the sealed edge outward, away from the mouth. This pushes squeeze-out away from the no-glue zone.
  9. Slip release paper, waxed paper, or clean scrap paper into any nearby opening while the adhesive dries so accidental squeeze-out cannot bond the channel shut.
  10. Test before decorating: slide the insert ten times, open the hinge ten times, and move the clip on and off the page ten times.

Why dry-fitting matters

A pocket that works empty can fail with the real insert. Test with the actual tag, folded note, photo copy, or page thickness because thickness changes the path.

Pocket Mouths

The mouth is not decoration. It is the entrance.

The pocket mouth is the open edge where the insert enters. If the mouth is too hidden, the reader will force the paper. If it is too narrow, the insert will wrinkle. If adhesive creeps into either corner, the pocket will feel fine once and then fail later.

Top-loading pocket Glue the left edge, right edge, and bottom edge. Leave the top open from corner to corner. Stop wet glue before the top corners so squeeze-out does not make a sticky lip.
Side-loading pocket Glue the top edge, bottom edge, and the side opposite the opening. Leave a 6 to 10 mm clean lead-in near the open side for easier sliding.
Diagonal tuck Glue only the edges that sit against the page. The diagonal edge is the mouth. Keep decoration away from the diagonal so the fingertip can still lift it.
Stacked pockets Build from back to front. Test each lower pocket before covering it with the next layer. The top pocket should never steal the opening of the pocket below it.

No-Glue Channels

A clean channel is what makes pockets, sleeves, and clips feel effortless.

A channel is the hidden space the paper travels through. In a pocket, the insert slides through the channel. In a sleeve, the card or photo copy sits inside it. In an altered paperclip, the page edge slides under the clip through it. The channel must be smooth, dry, and a little wider than the object moving through it.

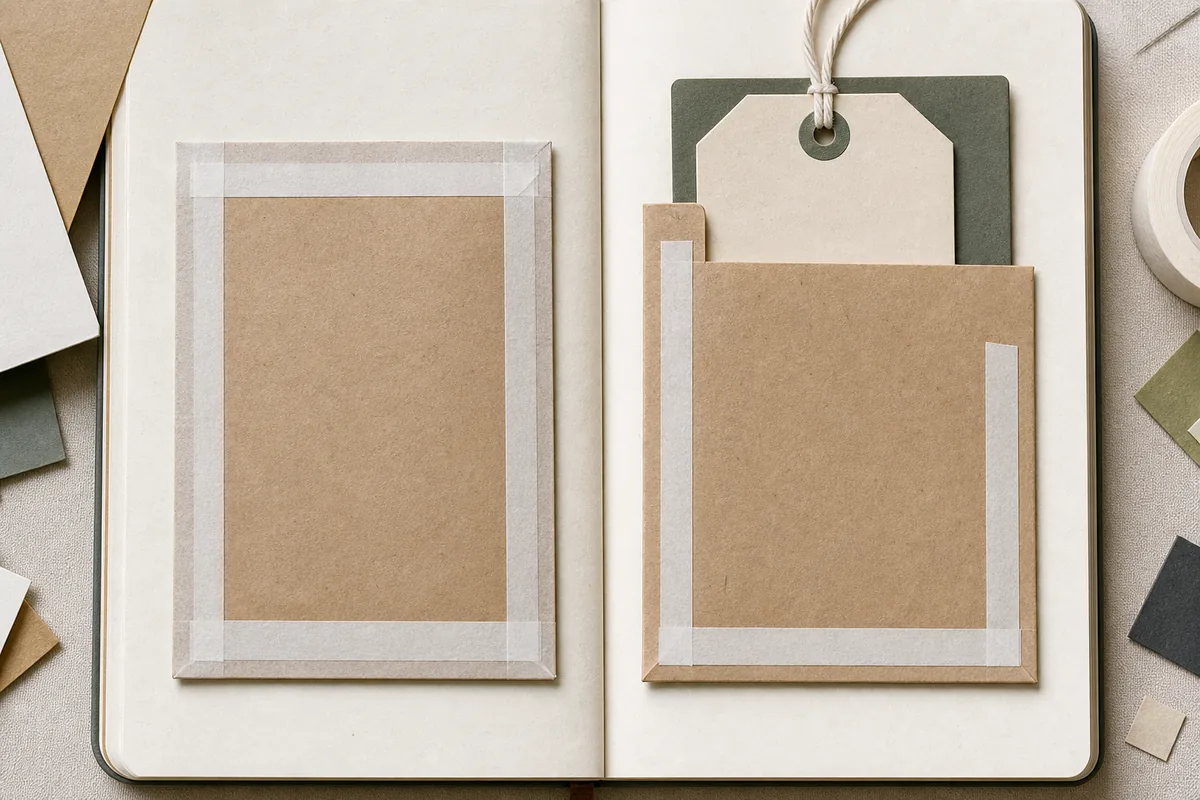

Comparison of a clean no-glue channel beside a sealed pocket mouth, showing where adhesive squeeze-out blocks an insert path
The clean version leaves a dry travel path. The sealed version looks finished but fails when the insert hits the hidden adhesive.
Clean channel: the insert can slide without scraping, buckling, or touching tacky adhesive. Sealed mouth: glue crosses the entrance or squeezes into the corner, trapping the insert path. Early warning: shiny edges, sticky drag, or paper fibers lifting inside the mouth mean the channel needs more clearance.
Pockets

Keep the entire mouth open and keep side adhesive narrow. If the insert has layers, let the pocket front bow slightly instead of forcing a tight channel.

Sleeves

Keep adhesive on outside tabs, backing strips, or the page behind the sleeve. Do not place adhesive where it can touch the face of a photograph, original, or delicate paper.

Belly bands

Glue only the two short ends or hidden tabs. The center span is a no-glue channel because the card needs to slide under it.

Altered clips

Glue the wrapper to itself, not through the gap where the page slides. The clip needs two paths: one for the page edge and one for any tiny tag pocket on the front.

Vellum pieces

Assume adhesive will show. Hide it under labels, folded tabs, stitched-style paper strips, or exterior flaps, and keep the inner sleeve surface dry.

Photo copies and originals

Use a copy inside handmade pockets. For actual photographs or important documents, use photo corners, stable sleeves, or separate archival storage instead of a glued channel.

Hinge Edges

A hinge needs adhesive beside the fold, not across the fold.

Hinges fail when the glue line crosses the bend. The paper can no longer flex, so it either lifts from the page, wrinkles, or tears along the fold. Keep the fold itself dry and give it a small gutter.

Paper flip Glue a narrow hinge tab to the page. Keep the fold line dry and bone-folded before attaching. Open and close it before adding top decoration.
Envelope flap Glue the envelope body or hinge tab, not the moving flap edge. The flap needs enough clearance to open without dragging against collage layers.
Fabric flip Use a wider, flatter attachment area because fabric flexes and frays. Keep wet adhesive away from the active fold unless the fabric is fully backed and tested.
Tipped-in insert Use a very narrow adhesive line along the binding edge of a loose sheet or insert. The rest of the sheet must remain free to turn, which is the same no-glue principle at book scale.

For a journal spread, the practical test is simple: open the hinge flat, close it, then open it again while the page is lying naturally. If the hinge lifts or pulls the page into a wrinkle, the adhesive area is too stiff, too wide, or too close to the fold.

Wet vs Dry Adhesive

Choose the adhesive by the job, then use less than your first instinct.

No adhesive is good everywhere. Wet adhesive can make a strong edge, but it can warp paper and squeeze into the channel. Dry adhesive keeps paper flatter, but it is unforgiving and can fail on fibrous or stressed edges. Tape, glue stick, craft glue, PVA, paste, and double-sided tape all behave differently.

Thin wet glue or PVA Useful for structural edges on decorative copies and sturdy paper. Spread it thinly, stop early near openings, and press with release paper so it does not creep into the channel.
Glue stick Good for light paper layers and low-stress collage. It is often weaker on working pockets, especially at corners that get pulled repeatedly.
Tape runner or double-sided tape Flat and fast for clean decorative builds. It has no wet squeeze-out, but pressure-sensitive adhesives are not a preservation solution for important paper or photographs.
Washi tape Best treated as decoration or temporary reinforcement, not the only structural hinge for a frequently handled piece.
Hot glue Too thick for most pockets, sleeves, and clips. It creates lumps, stiff ridges, and channels that catch inserts.
Conservation paste methods Wheat starch paste, methyl cellulose, and other conservation methods belong to trained practice. For heirlooms or valuable pieces, do not improvise on the original.

Do not confuse "dry" with "safe forever"

Many dry adhesives are pressure-sensitive. They can discolor, ooze, dry out, or become difficult to remove over time. For memory journals made from copies, that may be an acceptable craft choice. For originals, photographs, and valuable papers, use preservation storage methods instead.

Preservation Cautions

Use the no-glue zone rule even more carefully around originals and photographs.

Junk journals often mix decorative copies with real receipts, family photographs, old letters, tickets, maps, book pages, and fragile scraps. Those are not all the same material. Old paper can be acidic or brittle. Photographs can stain, block, stick, or react badly to adhesives and unstable plastics. Metal clips and staples can dent or corrode. Rubber cement, ordinary tape, hot glue, and unknown self-adhesive products can age badly.

Use copies for glued structures Scan or photograph valuable originals, then use the copy inside the handmade pocket. The journal gets the story. The original gets safer storage.
Keep adhesive off photographs Use photo corners, stable sleeves, or separate enclosures instead of gluing the photo into a collage pocket. If a photo is stored in paper, keep seams away from the image surface.
Avoid unstable materials Skip rubber cement, ordinary tape, sticky notes on originals, PVC or vinyl plastics, rubber bands, rusty clips, and unknown adhesive labels. "Acid-free" alone does not prove a material will remain stable over time.
Protect the page from clips If you use a paperclip as a craft structure, keep it on modern decorative pages or use a paper barrier. Do not clip fragile originals. Clips and staples can deform paper even before they rust.

When an item has monetary, legal, family, or historical value, the beginner-friendly answer is not better glue. It is less attachment: a sleeve, a four-flap enclosure, a photo corner mount, a copy, a paper flag, or professional conservation advice.

Failure Tests

Test the structure while it is still plain enough to rebuild.

A failure test is not a punishment for the page. It is a cheap way to keep the finished journal from sealing itself shut after the decoration is already beautiful.

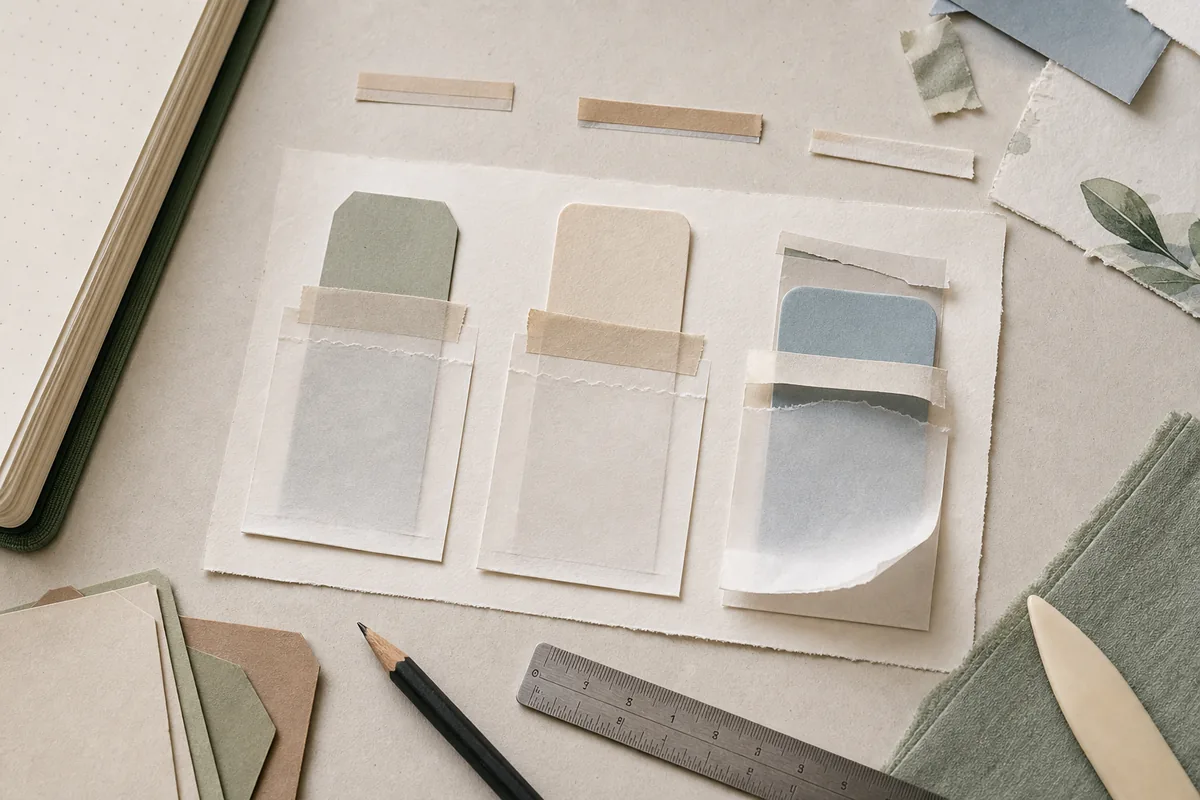

Scrap test strip showing a small pocket, sleeve channel, hinge fold, and altered clip path being tested before final assembly
Make a scrap test strip with the same paper and adhesive. Slide, bend, press, and peel the test before committing on the final page.
Ten-slide test Slide the real insert in and out ten times. If the card scrapes, widen the mouth or rebuild with narrower adhesive.
Upside-down test Turn the page upside down once. The insert should not fall out unless the structure is meant to be loose. If it drops, add a stop edge away from the mouth.
Closed-book test Close the journal under light weight after the adhesive dries. If the pocket leaves a lump or imprint, reduce insert thickness or move bulky decoration away from the channel.
Hinge open-close test Open and close flips or tipped-in pieces ten times. If the fold crackles, lifts, or wrinkles the page, the glue is too close to the hinge.
Clip throat test Slide the altered clip on and off a scrap page. If it grips too tightly or catches, adhesive or decoration has invaded the page channel.
Corner rub test Rub the pocket mouth lightly with a fingertip. Sticky drag, shiny residue, or lifting fibers mean the adhesive is exposed and the mouth needs cleanup.

Practice Page

Make a three-structure test page before using favorite paper.

Cut one top-loading pocket, one narrow belly band, and one simple paper hinge from scrap paper. On the back of each piece, pencil the bond zones and no-glue zones. Build them on a plain page with the adhesive you use most often.

Test with one tag, one folded note, and one scrap page edge. If all three structures still work after drying, write the adhesive name on the test page. That becomes your reference card for future journals.

Pocket mouth stays open Channel is wider than insert Hinge fold is dry Clip throat still slides Adhesive stops before corner Real insert passed ten slides

Final Thought

The best glue line is the one that does only one job.

Do not ask adhesive to hold the edge and fill the channel. Do not ask it to strengthen a hinge and cross the fold. Do not ask it to hide a clip and also live in the page path. Give every moving part a no-glue zone, and the finished piece will feel calmer, flatter, and easier to use.

Final Checklist

Check every opening before the page is finished.

Map

The pocket mouth, channel, hinge fold, belly band gap, or clip throat is clearly marked as a no-glue zone.

Fit

The real insert slides, opens, flips, or clips without scraping, bending, or guessing.

Adhesive

The glue line is narrow, dry, and stopped before the opening, notch, hinge, or hidden path.

Preservation

Originals and photographs are copied, corner-mounted, sleeved, or stored separately instead of glued into a craft pocket.

Pressure

The page closes under light weight without new lumps, sticky drag, or raised adhesive ridges.

Repair

If the test fails, rebuild while the structure is plain. Do not solve a sealed channel with more decoration.
