Add a Little Movement Without Overloading Your Journal

A flap, fold, or slider should be lovely to use as well as to look at. Choose a useful movement and check the closed book.

Words by Tiny Systems Co.4 min read4 things to tryUpdated September 5, 2026

The photo can show the afternoon. Lift a little flap beside it, and you can keep the sentence you only want to find when you open the page.

Choose the movement that suits what you're saving: a lift, a turn, or a card that comes all the way out. We'll start with one light top-hinged flap, then look at the other structures when you need them.

TRY THIS FIRST20 minutes, plus adhesive drying

Make one small cover that lifts easily over your note.

  1. Choose a short note to cover, then cut a small light-paper rectangle that fits inside the journal page and covers those words.
  2. Fold a thin paper strip lengthwise to make a hinge.
  3. Attach one hinge half to the rectangle’s top back edge and the other to the page above it, keeping the crease free of adhesive.
  4. Leave the sides and bottom unattached; lift from the bottom to check the reveal.
  5. After the adhesive sets, write below the hinge’s shadow, let the ink dry, and test the flap with the book partly open and closed.
Walk through it with us
Interactive structures example from the Tiny Systems Co. guide collection
A visual starting point. Follow the steps below, and leave room for your own paper, handwriting, and ideas.
In this guide
Gather a few things See what you’ll need
  • Lightweight paper and scrap paper for trials
  • One thin insert if needed
  • Scissors
  • A ruler and pencil
  • Narrow adhesive
  • Optional: a craft knife and cutting mat for a slider slot
Choose an exercise 4 things to try as you read

Choose what you want your hand to do

Begin with the action the note needs. A tip-in turns like a page; a flap lifts; a foldout opens into a larger sheet. A belly band or tuck lets you remove the note, while a slider keeps a small card on a guided path. Choose one for the first trial so you can tell which part causes a catch.

Keep the first version light. Count the layers where the piece will rest when closed, including folded ridges and inserts. There’s no universal safe layer count; thin paper and a roomy binding behave differently from thick card in a tight notebook. Leave decoration until the ordinary page turn still feels comfortable.

Try a what-ifThe second fold closes against the first
Try a what-if

The second fold closes against the first

Look at the clearance inside this paper foldout.

A SITUATION TO THINK THROUGH

A two-fold trial uses equal-width panels. The inner panel’s free edge meets the outer crease, so the piece will not settle closed even without decoration.

Compare the three choices

Which fresh trial addresses that collision?

  1. Make the inner panel slightly narrower before attaching the foldout

    The inner panel needs room inside the outer fold. Test the closed paper shape while the fixed panel is still loose.

  2. Press a sharper crease into both equal panels

    A neater crease does not remove the edge-to-fold collision. Increasing force may strain the paper without creating clearance.

  3. Shorten both panels by the same amount

    The relative widths would remain equal, so the same fit problem could remain. Change the panel that must tuck inside.

A panel that folds inside another needs its own clearance.

What would you try?

Choose an option to see what it would do. You can explore all three.

Now try it on your paper.

Fold a two-panel scrap trial, close it slowly, and mark the edge that meets a crease. Adjust the inner panel on the desk before attachment.

ONE WORKED EXAMPLE

A first lift beside the photograph

You have a photograph and one sentence you want to read only when you lift a cover. The rest of the spread can stay still.

Before

The first plan adds a flap, a pocket and a sliding tag around the same short note, making it hard to see which movement is useful.

After

One light rectangle covers the sentence. A folded-paper strip joins its top back edge to the page, with adhesive only on the hinge halves. The sides and bottom remain free; the note sits below the hinge’s shadow and the dry assembly closes comfortably.

What changed—and what to check

One clear movement answers the job and makes the first trial easier to inspect. The note does not need several ways to reach it.

Try this check. Lift from the free bottom edge with the book partly open, then lower the cover without catching the sentence.

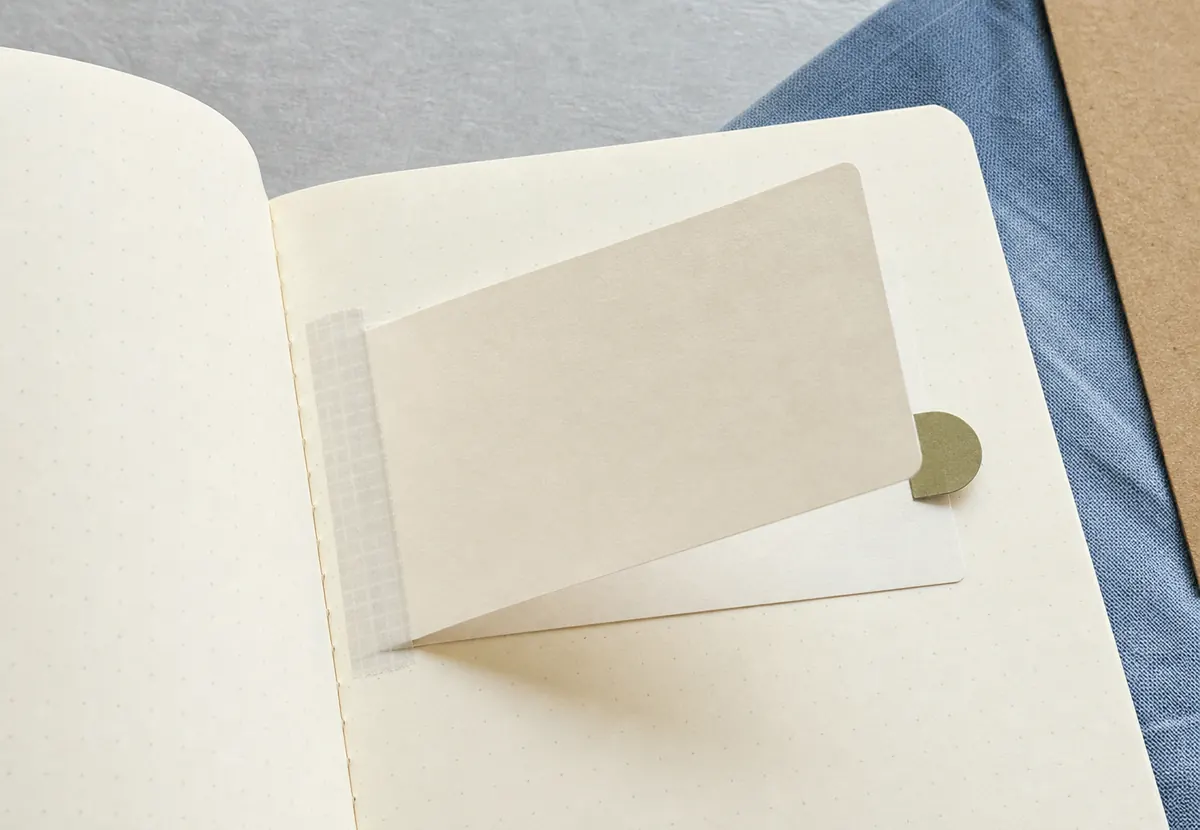

Add one lightweight leaf with a narrow hinge

Cut your extra leaf slightly smaller than the journal page. Fold a thin paper strip lengthwise. Attach one half along the back of the leaf’s left edge and the other half to the base page beside it. Keep adhesive on those attachment areas and out of the folded crease.

Position the hinge a little outside the curved gutter, rather than pushing it into the spine. Lift the leaf from its free right edge and turn it toward the left. It should move before the base page starts pulling upward. A hinge that feels stiff needs thinner paper, a narrower attachment, or more gutter clearance.

For hinge dimensions and binding clearance, use the small tip-in walkthrough.

Try the exampleFind the free edge of your new leaf
Try the example

Find the free edge of your new leaf

Change the hinge edge and opening angle. Read the covered area as the leaf turns.

Left hinge stays fixed; the flap lifts 60° from closed.Fold projectionYour wordsWine = fixed hingeSide profile60° from closed
Read the words in this example
  • Fold projection
  • Your words
  • Wine = fixed hinge
  • Side profile
  • 60° from closed

Left hinge stays fixed; the flap lifts 60° from closed.

Lifting the flap can reveal more of the story beneath its closed footprint. Gold is the moving flap and wine is its attached edge. The side profile shows the lift angle; the upper view is an oblique geometric projection. These are rigid-paper schematics, not predictions of bending, clearance, or collisions. Try the motion: extra leaf. This is a projected paper-hinge diagram. The article’s right-page tip-in has a left hinge outside the gutter and turns left from its free right edge; try the actual book for clearance.

Lift angle
60°
Fixed hinge
Left edge
Model
Oblique projection + side profile
Now try it on your paper.

Fold a separate thin hinge strip and keep its crease dry. Turn the blank leaf before committing a sentence to it.

Hide a line, or unfold a longer one

For a simple flip-up note, put that narrow hinge along the top of a small paper rectangle instead. Attach only the hinge; leave the sides and bottom free. Lift from the bottom to read the page beneath it. Write low enough that the hinge’s shadow won’t cover the first line.

For a foldout, use lightweight paper and choose the opening direction before attaching the fixed panel. Crease a closed piece smaller than the journal page. With a second fold, make the inner panel slightly narrower: it needs to fit inside the outer fold, not meet it edge to edge. Keep decoration off the ridges and the free edge inside the book.

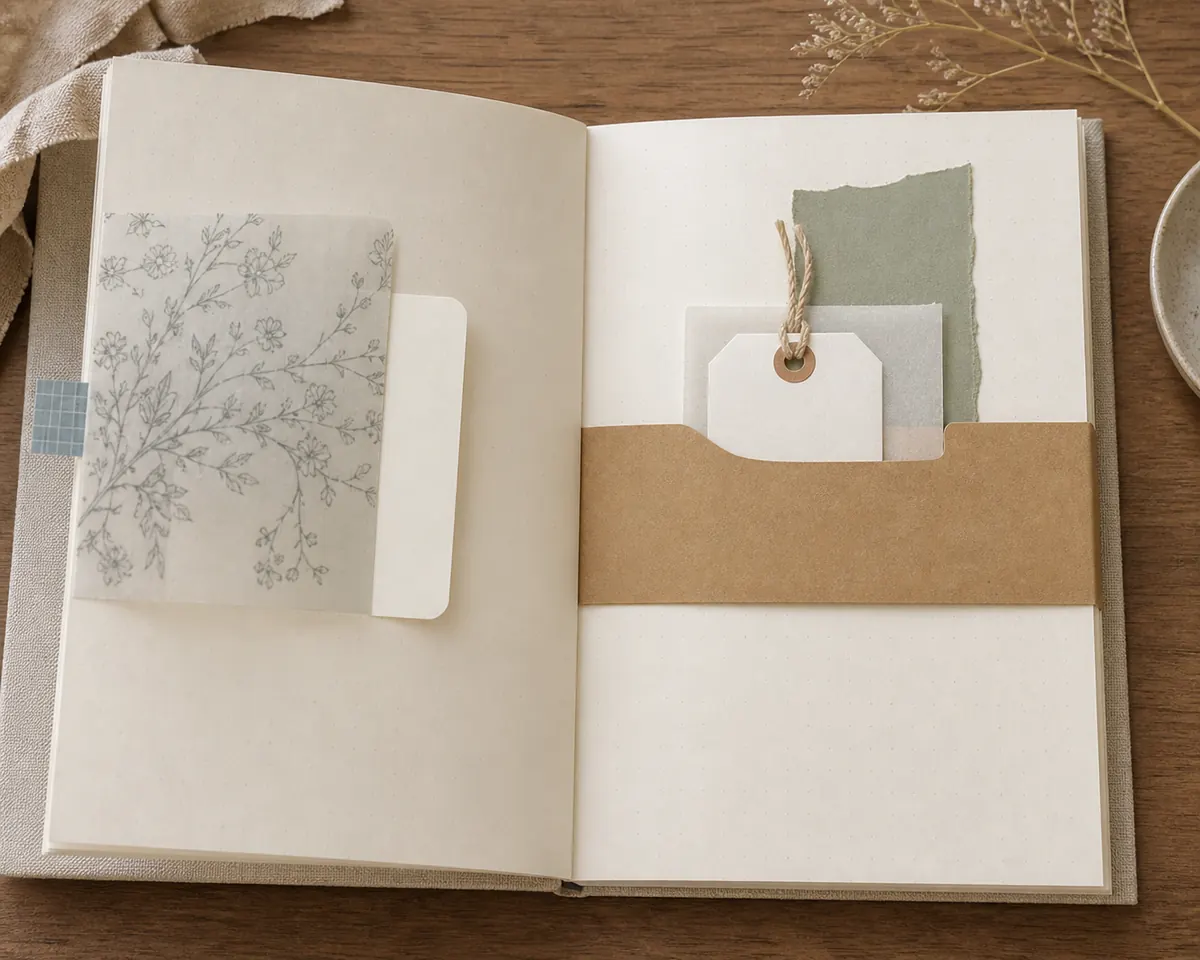

Hold one card under a loose band

Lay a paper strip across your page with the actual card beneath it as a temporary spacer. For a horizontal band, attach only the left and right ends; the card slides up or down through the open middle. A vertical band attaches at its top and bottom, allowing a card to slide sideways.

Remove the spacer while the adhesive sets, then try the card again. It should stay put without needing a hard pull. If the page bows, narrow or thin the insert, or rebuild the band with slightly more room. Never glue the center to fix a loose band; that closes the space the card needs.

GO A LITTLE FURTHERUse a corner when you only need a little hold

Use a corner when you only need a little hold

Cut a paper triangle and place it in a bottom page corner. Attach the horizontal bottom and vertical side edges, leaving the diagonal open. Slide a light note behind the diagonal and let part of it remain visible.

A side tuck can use a rectangular scrap attached along one side and the bottom instead. Keep its other edges open. Choose a full pocket if the note needs more protection; a tuck intentionally leaves more of the insert exposed.

GO A LITTLE FURTHERKeep a first slider small and visible

Keep a first slider small and visible

Build this on loose scrap, where you can reach both sides. Use a flat backing, a narrow moving card, and a cover panel. Put thin guide strips beside the card, leaving a little side clearance, and attach the cover to the guides rather than to the moving card. Keep the exit end open.

If a narrow pull handle comes through a slot in the cover, cut the slot on a mat before assembly, slightly wider than the handle. Thread the handle through and test the full intended movement before gluing the cover down. Double only the exposed grip if it needs strengthening. Keep the sliding length single-layered and free of adhesive. A simple open-ended sleeve is a useful first trial if the slot version catches.

Put the steps in orderTest the slider before hiding its path
Put the steps in order

Test the slider before hiding its path

Reorder the build so you can still reach the moving parts when you need to adjust them.

One workable order

  1. Cut the handle slot on loose scrapThe slot is easier to cut accurately on a mat before the cover is attached.
  2. Place guides beside the moving cardThe card establishes the channel; guide strips must leave its sides room to travel.
  3. Thread the handle and test its full travelThe handle must already pass through the slot before the cover closes the assembly.
  4. Bond the cover to the guidesThe cover attaches to guides, leaving the moving card and its exit free.
  5. Retest after the adhesive setsA wet trial cannot reveal a dried glue ridge inside the finished channel.

Which check needs to come first?

The example shows one workable order. The slot and the guide preparation may happen in either order. The full movement test belongs before final closure.

Now try it on your paper.

Build on a loose backing. If the slot keeps catching, try an open-ended sleeve before strengthening the entire moving card.

Try it the way you’ll actually read it

Let adhesive set, load the real note, and move the piece with the journal fully open and partly open. Close the cover slowly. Check for rubbing at the gutter, a bent free edge, or a mark on the facing page, then pretend to write on the next sheet.

Notice when the catch happens. A piece that works flat on the desk may still rub at the gutter when the book is partly open. Adjust the path, position, or one excess layer on a loose trial; replace paper whose crease has cracked. Finish with an exposed grip or small lift cue once the real note moves and the cover closes comfortably.

Try the exampleCount what meets when the moving piece closes
Try the example

Count what meets when the moving piece closes

Change the layers and their position. Include folded ridges and the insert in your own count.

4 layers add a nominal 0.8 mm at the outer edge.Position on facing pages4Left pageRight pageSpineNominal sectionGold: left pageNo facing stack0.8 mm added
Read the words in this example
  • Position on facing pages
  • 4
  • Left page
  • Right page
  • Spine
  • Nominal section
  • Gold: left page
  • No facing stack
  • 0.8 mm added

4 layers add a nominal 0.8 mm at the outer edge.

4 × 0.2 mm = 0.8 mm for one stack.Changing the position moves the addition but does not change this arithmetic. A matching stack on the facing page would double the nominal addition at that position. The section adds only the selected paper layers at a fixed drawing scale of 10 pixels per millimeter; page stock, glue and fasteners are excluded. Real compression, binding and closure vary, so test the assembled journal without treating this total as a safe limit. This adds nominal paper thickness only. It cannot predict binding strain, adhesive stiffness, or whether a particular mechanism clears its neighbors. Test writing on the next sheet as well as closing the cover.

One stack
0.8 mm
Added layers at this position
4
Nominal combined addition
0.8 mm
Position
Outer edge
Now try it on your paper.

Load the real note, move the piece with the book partly open, then close it slowly. Remove one unnecessary layer at the ridge you can feel.
